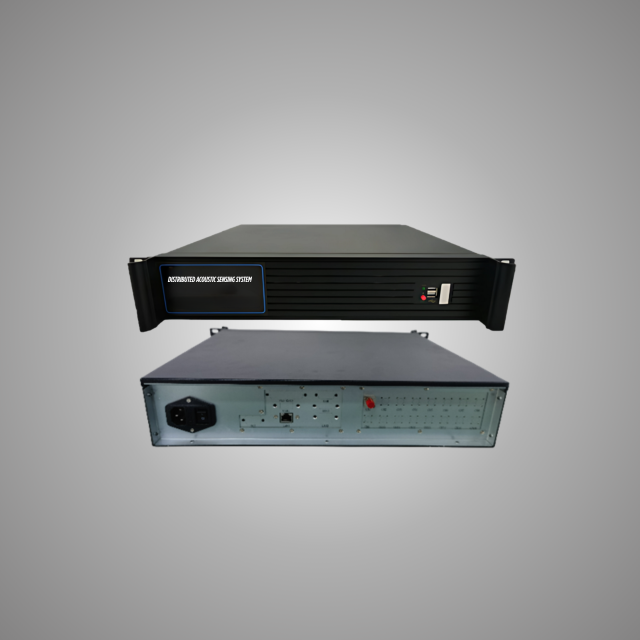

HZ-iDAS-10

No.HZ0702001001

The Hertzinno HZ-iDAS Series is a next-generation distributed sensing platform that utilizes standard optical fiber as a high-sensitivity acoustic and vibration sensor. Based on advanced optical phase monitoring technology, the system achieves long-distance detection with high spatial resolution and intrinsic safety.

By analyzing the phase changes in backscattered light, the HZ-iDAS provides an end-to-end monitoring solution for critical infrastructure, offering rich measurement information and automated pattern recognition to distinguish between environmental noise and genuine threats.

Detection Distance
5 km
Spatial Resolution
5 m
Bandwidth
20 kHz
Min. Frequency
0.1 Hz
Channels
1CH / 2CH
Fiber Interface
FC/APC
  • Description

  • Specifications

  • Download

  • Real-Time Phase Demodulation: Unlike traditional amplitude-based systems, our HZ-iDAS provides real-time display of the phase demodulation signal for every vibration point, ensuring higher linearity and sensitivity.

  • Virtual Microphone Monitoring: Operators can select any point along the sensing cable to monitor the real-time sound signal in the time domain, effectively turning the fiber into thousands of virtual microphones.

  • Advanced Spectrum Analysis: Perform localized frequency analysis to identify signal types and assess event severity in real-time.

  • AI-Driven Pattern Recognition: Our intelligent algorithms accurately classify specific industrial events, including excavators, drills, picks, hammers, and vehicles, to minimize false alarms.

  • Intrinsic Safety: Passive fiber sensors require no field power, making them ideal for hazardous zones (ATEX/IECEx) and high-EMI environments.

Model

HZ-iDAS10

HZ-iDAS20

HZ-iDAS50

Detection Distance

5km

20km

50km

Spatial Resolution

5m

10m

10m

Bandwidth

20kHz

5kHz

1kHz

Min. Detection Frequency

0.1Hz

0.1Hz

0.1Hz

Fiber Loss

0.3dB/km

Channels

1CH/2CH

Laser Class

Class 1

Optical Fiber Interface

FC/APC

Communication

1000M

Power Supply

AC220V(Customization for 110VAC)
