Name: HZ-FA-371
Brand: Hertzinno
SKU: HZ0202001
Availability: InStock
Rating: 5 (1 reviews)

No.HZ0202001

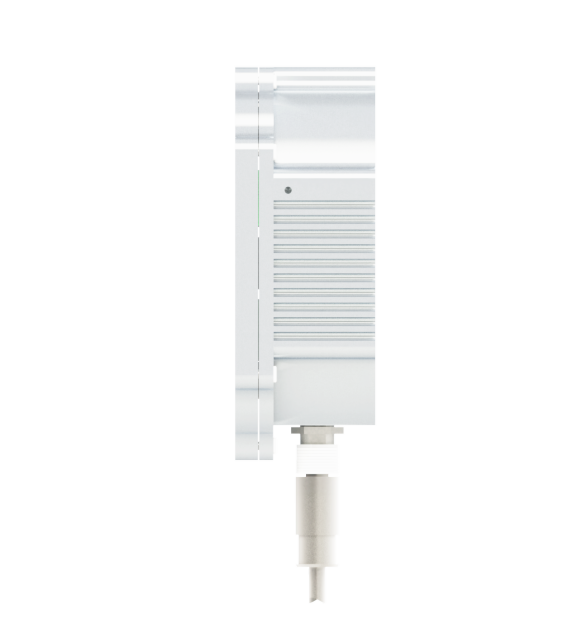

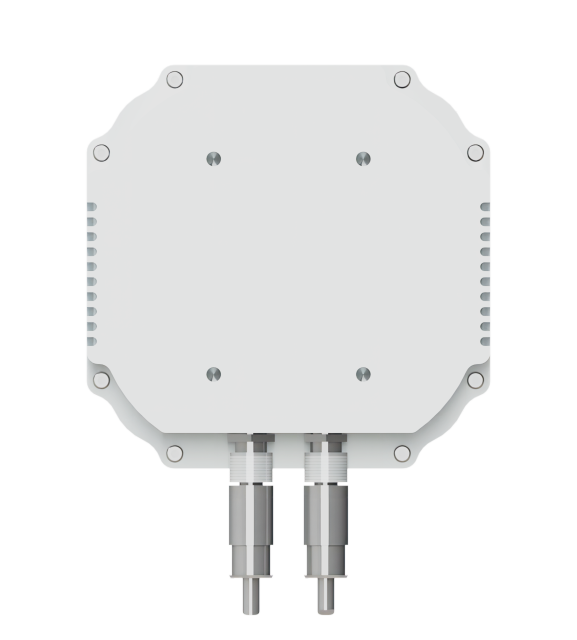

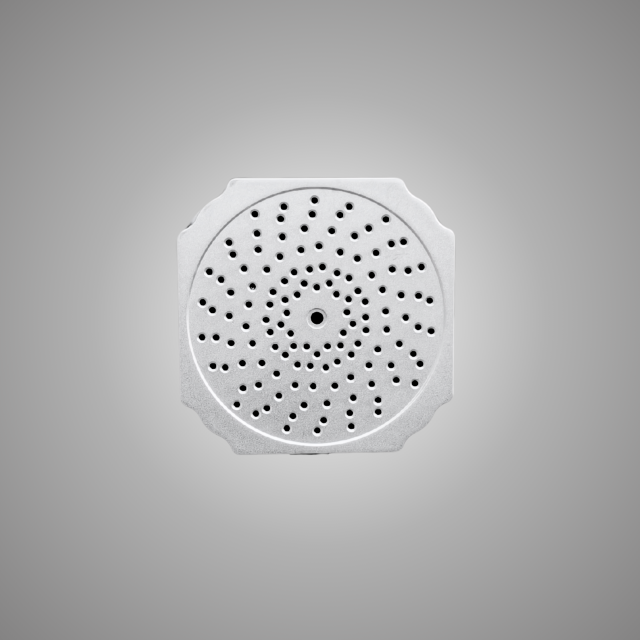

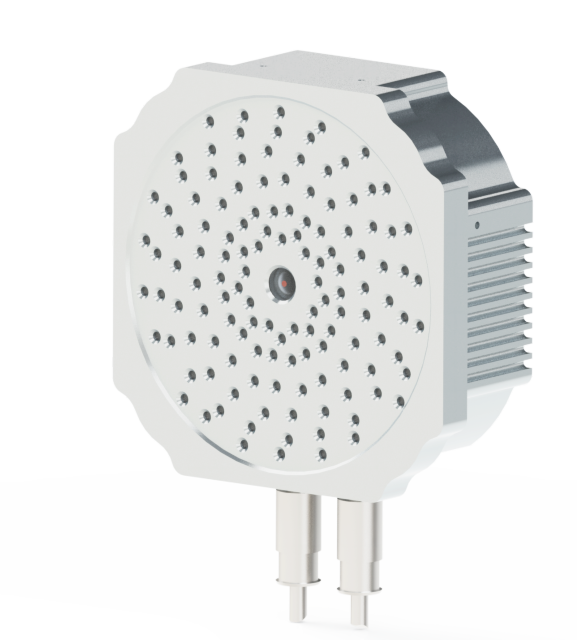

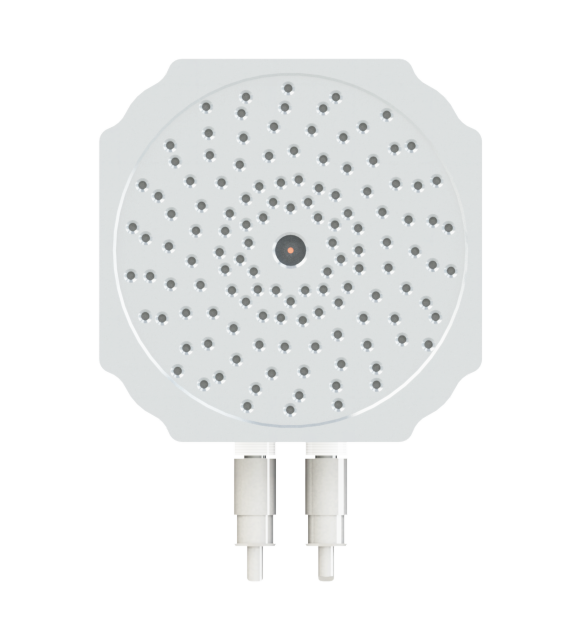

The Hertzinno HZ-FA-371 is a high-sensitivity acoustic imaging system engineered for continuous industrial surveillance. Boasting a sophisticated 128-channel MEMS microphone array, it is designed for the 24/7 detection and quantification of partial discharge in high-voltage systems and gas leaks in compressed gas infrastructure.

Microphone Array

128-Channel MEMS

Frequency Range

2kHz ~ 65kHz

Detection Distance

0.3m ~ 50m

Leak Sensitivity

>0.035 l/min (@0.3m, 120KPa)

Video Resolution

Max 2592*1944 (H.264)

Dimensions / Weight

135mm x 171mm x 48mm / ~750g

Power Supply

DC 12V/3A

Explosion Proof

Ex ib IIC T4 Gb / Ex ib IIIC T80℃ Db

GET A QUOTE

Overview
Download

High-Density Sensing: Equipped with 128 MEMS microphones, the camera delivers exceptional dynamic range (30dB ~ 120dB) and precise localization of multiple sound sources simultaneously.

Explosion-Proof Safety: Certified with Ex ib IIC T4 Gb and Ex ib IIIC T80℃ Db ratings, making it suitable for hazardous zones in petrochemical and energy sectors.

Automated Diagnostics: Features real-time estimation of gas leak rates (detecting leaks >0.035 l/min @ 0.3m) and real-time prediction of partial discharge types.

Seamless Integration: Supports RTSP, HTTP, and Ethernet transmission protocols for easy integration into SCADA systems or robotic control units.

Ruggedized Build: Rated IP66/IP68 for water and dust resistance, operating reliably in temperatures from -20℃ to 70℃.

WELCOME TO OUR CENTRE

Request More Info

Hertzinno provides practical solutions utilizing acoustics, optics, and artificial intelligence for the energy and modern manufacturing industries. Contact us for detailed technical specifications or application case studies.
