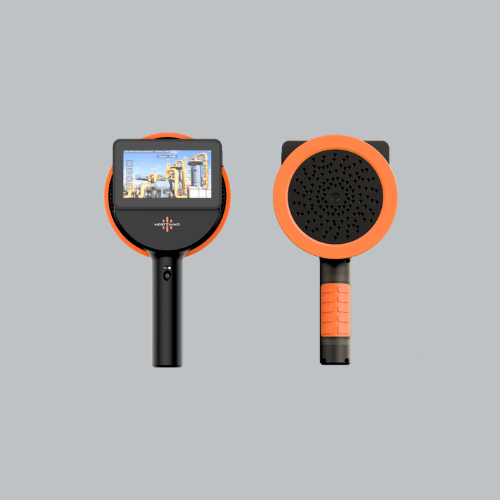

HZ-HA-170p is an ATEX-certified acoustic imaging system specifically engineered for hazardous environments

. Featuring a 138-channel MEMS microphone array, it provides real-time sound source localization, partial discharge type prediction, and gas leak rate estimations

. As the world's lightest acoustic camera at approximately 1100g, it enables professionals to safely and swiftly identify potential failures in high-voltage and compressed gas systems

Microphone Count

138 MEMS Microphones

Frequency Bandwidth

2kHz - 100kHz

Operating Distance

0.3m - 200m

Dynamic Range

-30dB ~ 120dB

Storage

Internal 64GB

GET A QUOTE

Overview
Specifications

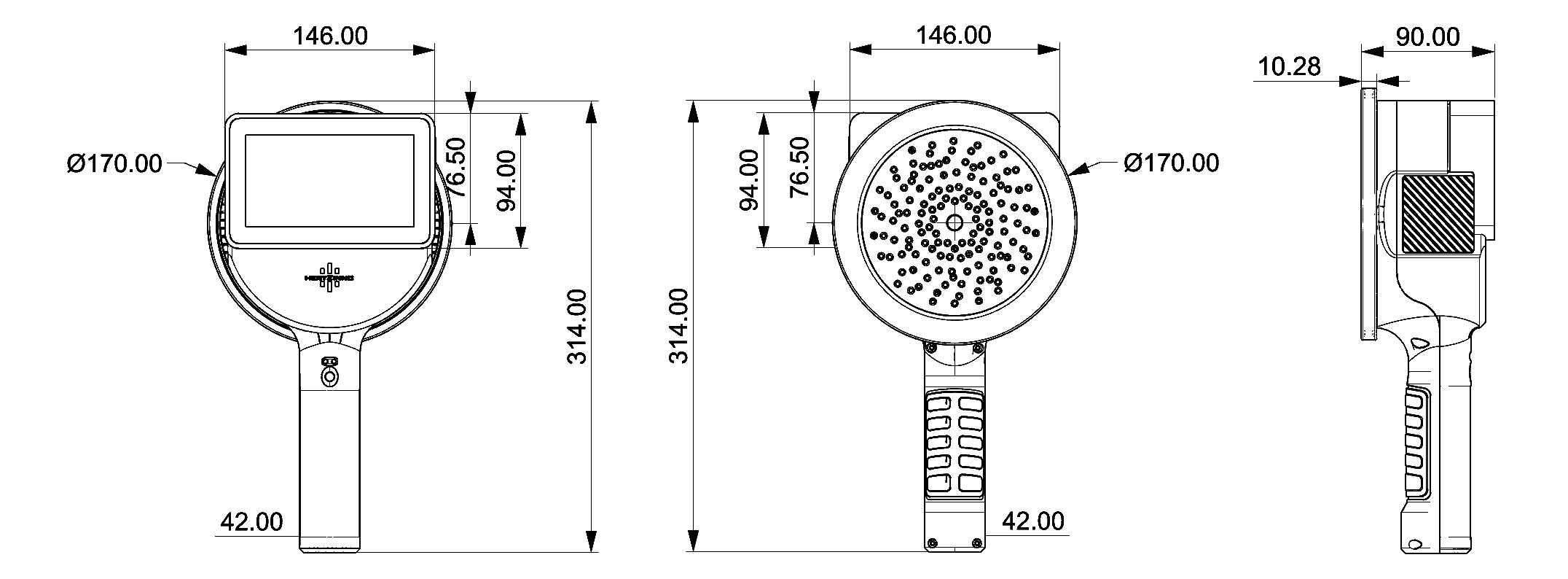

Dimension
Package List
Download

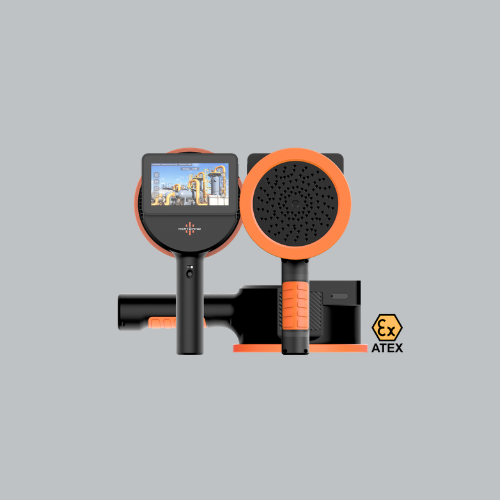

Strict ATEX-Certified Safety

The HZ-HA-170p is designed to meet rigorous industrial safety standards, holding ATEX certifications (Ex ib IIC T4 Gb / Ex ib IIIC T80°C Db)

. This intrinsically safe design ensures that inspectors and professionals can securely operate the device in hazardous areas to detect partial discharge issues and gas leaks without introducing ignition risks

Advanced Acoustic Diagnostics & AI Integration

Boasting an array of 138 MEMS microphones, the system supports both audible and ultrasonic frequencies across a 2-100kHz bandwidth. Driven by Hertzinno's AI engine, the camera excels in detecting and quantifying various instances of partial discharge (predicting Corona, Floating, and Surface types) and provides accurate, real-time estimations of gas leak rates and associated costs. It achieves high-precision diagnostics, capable of detecting leak rates as low as >0.0032L/min from a distance of 2.5 meters.

Ergonomic Design & Intuitive Operation

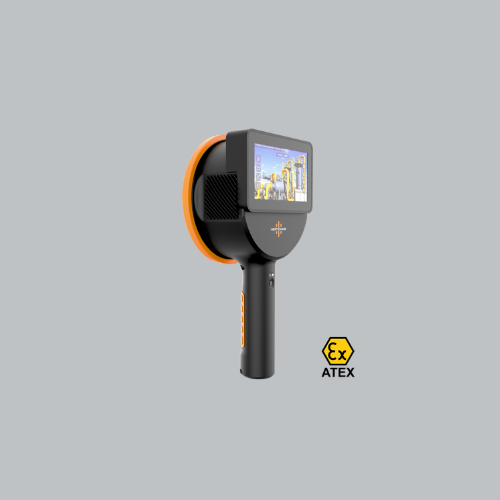

Engineered as the world's lightest acoustic camera (weighing approx. 1100g), the HZ-HA-170p reduces operator fatigue during extended field use. The device features a 5-inch capacitive touch screen that ensures a seamless user experience, intuitively presenting acoustic results against a cloud backdrop for easy identification of critical fault points. Equipped with a 4-hour battery operating time and an IP54 protection level, it delivers reliable and continuous performance in demanding industrial conditions.

Model	HZ-HA-170p
Acoustic
Microphones	138 Microphones
Dynamic Range of Camera	-30dB ~ 120dB
Minimum Imaging Sensitivity	10kHz：1dB SPL 20kHz：-10dB SPL 30kHz：-6dB SPL 40kHz：3dB SPL 50kHz：6dB SPL 60kHz：20dB SPL
Operating Distance	0.3m ~ 200m
Horizontal Spatial Resolution	150mm
Dynamic Range of multiple targets	0 ~ 18dB
Frequency Bandwidth	2-100kHz
Microphone Self-diagnosis	Support
General
Camera	13MP
FOV	75°
Low Lux	0.5Lux/F2.0
Photo Image Resolution	4K (3840*2160)
Imaging Frame	30FPS
Digital Zoom	8x
Video Image Resolution	1920*1080 @30fps
Storage	Internal 64GB
Video record	5min
Display	720P, 5-inch Capacitive Touch Screen
Wi-Fi	2.4G/5G
USB	TYPE-C
Battery Operating Time	4h
Direct Charging Type	Type-C
Protection Level	IP54
ATEX	Ex ib IIC T4 Gb Ex ib IIIC T80°C Db
Weight	Approx. 1100g
Dimension	314mm* 167mm* 89.9mm
Working Temperature Range	-20℃ ~ 50 ℃
Storage Temperature Range	-30℃ ~ 60 ℃
Humidity	10% -95%
Applications
Application Scenarios	Partial discharge/Gas leakage/Vibration
Partial discharge Type Prediction	Corona/Floating/Surface/Noise
Leaks Rate	>0.0032L/min from 2.5m >0.0044l/min from 6m >0.049l/min(0.83ml/s) @120kpa from 8m

Includes:

Acoustic Imager
USB-C Charger with country-specific connectors
USB-C Cable
Rugged hand carrying case
Adjustable hand strap

U-disk
