Listening to the Industrial "Heartbeat": Rotating Machinery Noise Detection and Advanced Fault Diagnosis via Acoustic Imaging

Listening to the Industrial "Heartbeat": Rotating Machinery Noise Detection and Advanced Fault Diagnosis via Acoustic Imaging

Beyond Vibration: The Future of Rotating Equipment Diagnostics

In modern manufacturing, rotating equipment such as motors, gearboxes, and fans form the "heart" of the production line. Unplanned downtime of these critical assets often leads to incredibly costly production losses.

Experienced maintenance engineers can often judge equipment health by "listening," but in noisy factory environments reaching 80-100dB, finding the source of abnormal sounds with the human ear or traditional single-point stethoscopes is like finding a needle in a haystack.

Today, industrial acoustic imaging technology is changing this reality. By capturing the sound field distribution through a microphone array and generating a real-time heat map of the sound source, acoustic cameras can pinpoint the location of the abnormal sound source, shortening troubleshooting times from hours to mere minutes.

`` (Image Suggestion: Show a Hertzinno HA3 camera scanning a large motor or gearbox on a factory floor, with a clear red acoustic focal point displayed on the screen.)

Common Rotating Machinery Faults and Their Acoustic Signatures

Characteristic noise is generated by faults in the very early stages, often manifesting as high-frequency acoustic signals and micro-vibrations. With acoustic cameras, we can intuitively capture noises from four typical mechanical faults:

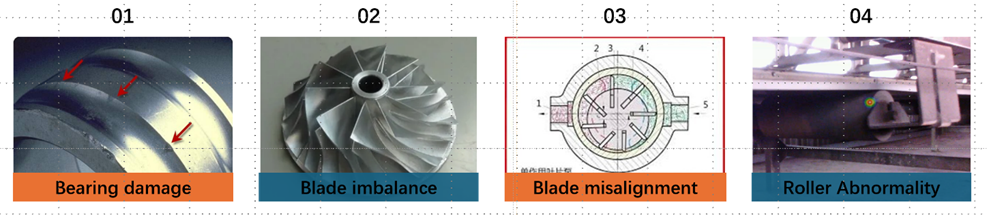

1. Bearing Damage: Often presents as high-frequency friction or periodic knocking.
2. Blade Imbalance: Uneven mass distribution in fans or pumps causes specific frequency rotational noise.
3. Blade Misalignment: Installation deviations cause periodic aerodynamic noise or mechanical friction during operation.

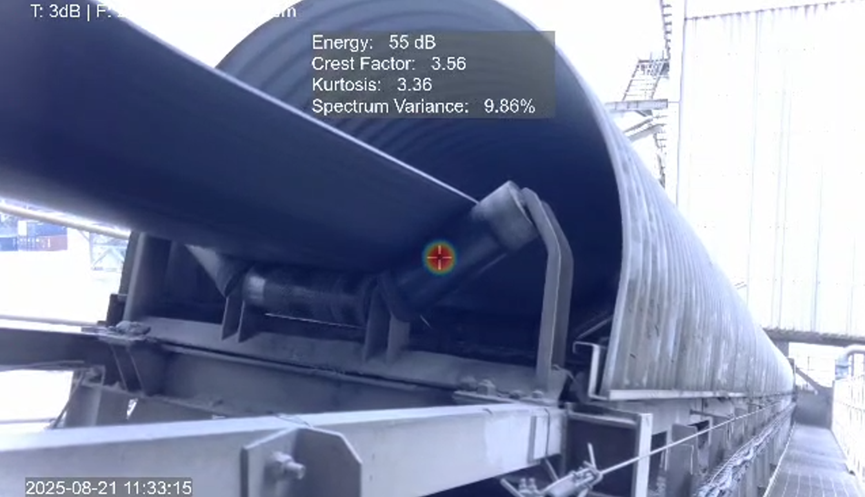

4. Roller Abnormality: Wear in conveyor belts or rolling mills leads to irregular friction and collision sounds.

Beyond the Surface: Early Warning Using "Kurtosis" and "Crest Factor"

Just "seeing" the sound isn't enough; true predictive maintenance requires deep quantitative analysis. In Hertzinno's mechanical noise diagnostic system, we introduce two crucial statistical indicators: Crest Factor (CF) and Kurtosis.

• Crest Factor (CF): An amplitude ratio that tells you how large the largest impulses are.
• Kurtosis: A statistical measure that tells you how frequent and how extreme the impulses are within the signal's distribution.
•

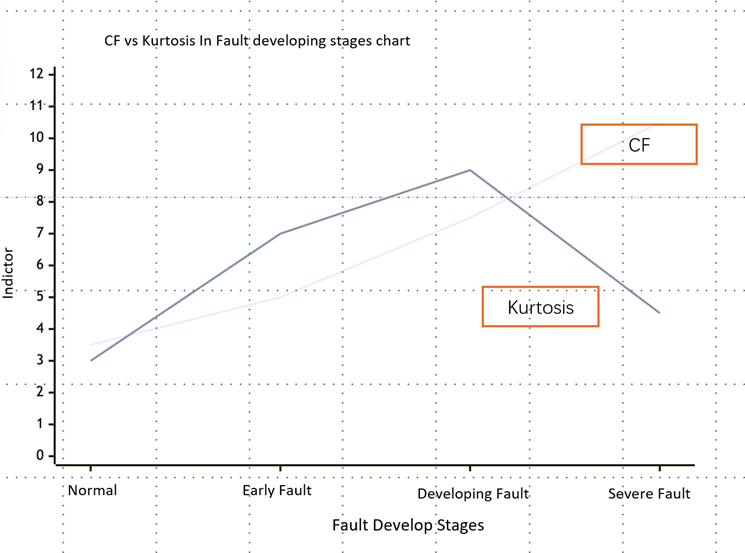

1. Tracking the Acoustic Evolution of a Fault:

1. Early Fault Stage: Kurtosis rises sharply and alarms first. Sparse, sharp impulses drastically change the statistical distribution long before the RMS (Root Mean Square) vibration values show any noticeable change. Simultaneously, CF also increases, as peaks rise faster than the RMS.
2. Developing Fault Stage: Both indicators rise as impulses become stronger and more frequent. Notably, once this indicator (Kurtosis) reaches its peak (e.g., when a bearing completely fails and forms continuous broadband noise), it starts to decrease.

By continuously tracking these key indicators, engineers can accurately determine the exact lifecycle stage of the equipment fault.

Standardized Inspection Workflow: Hertzinno's Best Practices

To obtain the most accurate mechanical abnormal noise data in complex industrial sites, the Hertzinno team has summarized a standardized setup guide based on the new generation HA3 series (equipped with a 144-channel array and ultra-wideband capabilities):

1. Parameters: Set the detection band to 20 ~ 40kHz (M mode). This high-frequency range effectively filters out most low-frequency background noise in the workshop, accurately extracting the high-frequency characteristics of mechanical friction.
2. Mode Selection: Select the dedicated "Mechanical Noise" mode in the system.
3. Data Capture: Aim at the suspicious equipment and take at least 5 photo pictures or a 5s video to ensure the system captures enough comprehensive voiceprint data for subsequent CF and Kurtosis calculations.

 Moving Towards 24/7: Online Voiceprint Monitoring Systems

For core assets where the cost of downtime is extremely high or the operating environment is hazardous, Hertzinno also offers an online voiceprint monitoring system.

This system can provide 24/7 monitoring of acoustic dimensions, track voice change trends, identify environmental sound characteristics, and deliver enhanced scenario adaptability for a fully automated predictive maintenance solution.

Conclusion Industrial acoustic imaging is not just a "camera that sees sound"; it is a sophisticated acoustic data analysis system. By capturing minute abnormal noises with a precision 144-channel array and combining deep quantitative analysis of Crest Factor and Kurtosis, Hertzinno is dedicated to making the "heartbeat" of every piece of rotating equipment clearly audible, making unplanned downtime a thing of the past.
