If you work in industrial inspection, you know the scene: the site is noisy, the instrument is beeping, you know there's a leak, but you just can't pinpoint exactly where. Traditional methods—temperature sensors, gas concentration detectors—struggle in outdoor environments. Wind, humidity, background noise—false alarms are everywhere. You end up measuring over and over, relying on experience and gut feeling to make the call.
Basically, we've been asking inspectors to "listen" their way to the truth.

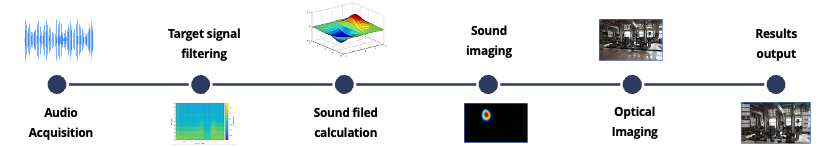

But acoustic cameras are changing that, the below picture shows the process of acoustic camera.
Simply put, it's a microphone array + an optical camera + real-time processing. Dozens or even hundreds of microphones capture sound simultaneously, and algorithms overlay a heatmap of the sound source onto the video image. Where the leak is? You see it instantly.
A few technical points worth noting:

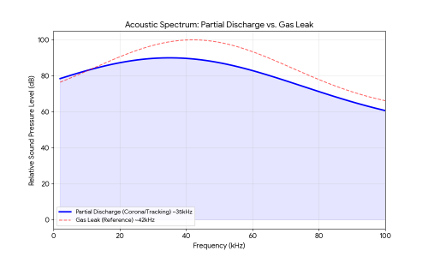

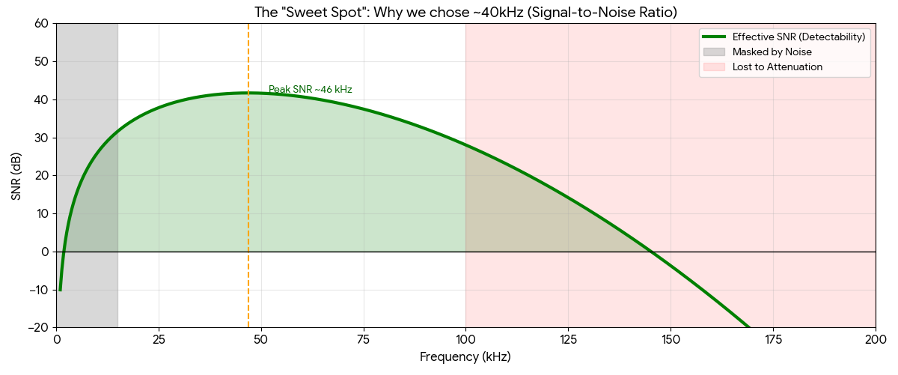

Gas leaks and partial discharges generate ultrasound, mostly in the 20kHz–40kHz range. Most background noise in industrial plants sits below 10kHz. That gives acoustic cameras a natural advantage—lock onto the high frequency and avoid the noise.

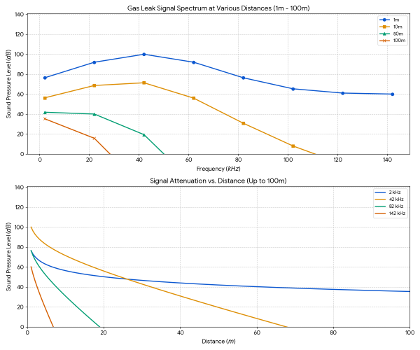

But high-frequency sound waves attenuate quickly in air—they don't travel far. So for long-distance detection, you need to lower the frequency to around 10kHz–30kHz, trading some resolution for range.
A good acoustic camera should be able to adapt its frequency range based on the task. With time frequency noise reduce, sptial noise reduce and deeplearning noise reduce, a camera can focused on the signal.
Microphone array spacing also matters.

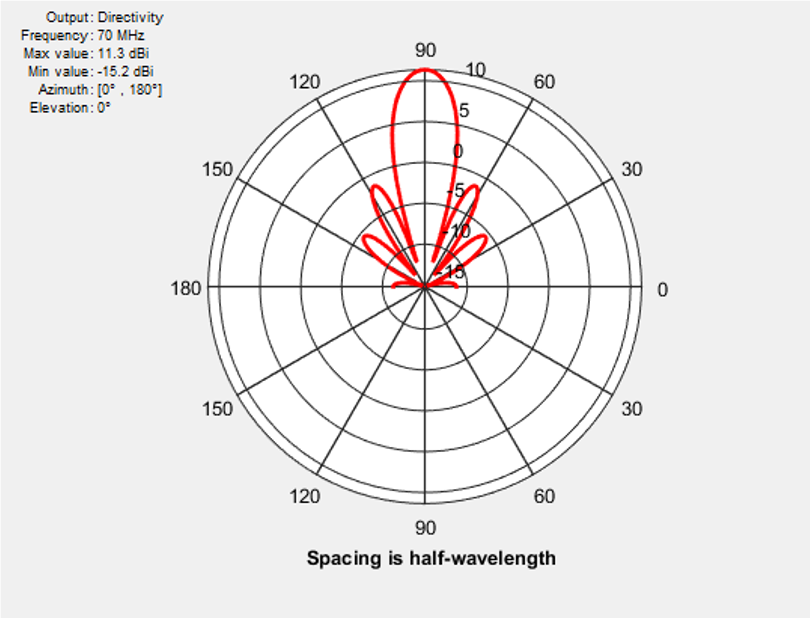

When spacing equals half the wavelength, you get optimal directionality and minimize artifacts. That's why lower-frequency detection requires a larger array aperture—physics is physics.
The relationship between wavelength (λ), frequency (f), and speed (v) is closely interconnected and can be described by the following formula:
v= λ × f , When the array spacing is less than half the wavelength, the array will be unable to accurately distinguish the direction of incoming sound waves from different sources, leading to "grating lobes" or "aliasing." In such cases, the array will lose its directional sensitivity.
This is the question I get most often: with all that background noise, can it really ignore everything else?
Honestly? It can't ignore it completely, but it can suppress it significantly. We use a four-layer noise reduction approach: time-domain, frequency-domain, spatial-domain, and deep learning. The AI model learns and filters out fixed or recurring noise patterns, leaving the leak signal you're actually looking for.
Of course, every tool has its limits. Minimum detection distance is 0.5m, and typical effective range is within 50m—it depends on the site's signal-to-noise ratio, if you use the camera detect air plane it can support 3km.
That's just the reality of field engineering.
A while back, we were testing at an oil and gas company. The site was typical—lots of machinery noise.
The interesting thing was, one experienced technician instinctively tilted his head and started listening for the faint hiss of a gas leak, trying to pick it out from the roar of the equipment. I know that move—I used to do the same thing.
Meanwhile, the HA3LX scanned the entire area in just a few minutes. On the screen, the leak location, intensity, and spectral signature were all clearly visible.
On one side: "I think I hear something? Maybe? Not sure?" On the other: "I see it. Right there."
The contrast in efficiency was striking. What used to take an hour or two of uncertainty got done in under fifteen minutes.
you can see it for yourself.
The real value of an acoustic camera isn't being a more sensitive stethoscope. It's letting you skip the "listening" stage entirely and go straight to "seeing."
Inspection is no longer about "what am I hearing?"—it's about "what am I seeing?" Efficiency multiplies by ten. Decisions stop being guesswork.
If you're still dealing with false alarms, missed leaks, and hours spent on site chasing uncertain readings, an acoustic camera is worth a serious look.
