Automated monitoring for partial discharge, gas leaks, and temperature faults.
Integrate real-time acoustic imaging into your industrial IoT system for enhanced safety.

Online Acoustic Camera with Integrated Laser Methane Detection

The ultimate safety solution for Oil Gas facilities. HERTZINNO combines 128-channel acoustic imaging with laser methane telemetry to detect and visualize gas leaks in real-time.

Intelligent Monitoring Ecosystem

Online Acoustic Cameras

Q: What is the difference between the HZ-FA-371 and the HZ-FA-371T?

The HZ-FA-371 is a dedicated fixed acoustic camera with 128 MEMS microphones for detecting partial discharge, gas leaks, and mechanical noise. The HZ-FA-371T adds a high-resolution thermal imaging module (640×512) to the same acoustic platform, enabling simultaneous acoustic and temperature anomaly detection for more comprehensive fault diagnostics.

Q: What types of faults can these acoustic cameras detect?

They are designed for three primary applications: Partial Discharge (PD) Detection: Identify and classify corona, floating, and surface discharges in high-voltage equipment. Gas Leak Detection: Locate pressurized gas leaks and estimate leak rate and potential financial loss. Mechanical Noise Monitoring: Detect abnormal sounds in rotating machinery for predictive maintenance.

Q: What is the detectable frequency range and distance?

The acoustic sensors cover a bandwidth of 2 kHz to 65 kHz, capturing both audible and ultrasonic signals. Depending on the source intensity and environmental conditions, the effective detection distance ranges from 0.3 meters up to 50 meters.

Q: What data outputs and integration protocols are supported?

The cameras support Ethernet/HTTP transmission, RTSP video streaming, and provide real-time data via HTTP/WebSocket for alerts and integration with SCADA, DCS, or third-party monitoring platforms.

Q: Does the device feature onboard processing (edge computing)?

Absolutely. The cameras perform real-time sound source localization and AI-based fault analysis directly on the device via edge computing. This minimizes latency, reduces network bandwidth usage, and enables instant alerts without relying on a central server.

Choose your deployment strategy. Whether you need fixed 24/7 area surveillance or agile robotic inspection, we have the AI-powered acoustic solution for your facility.

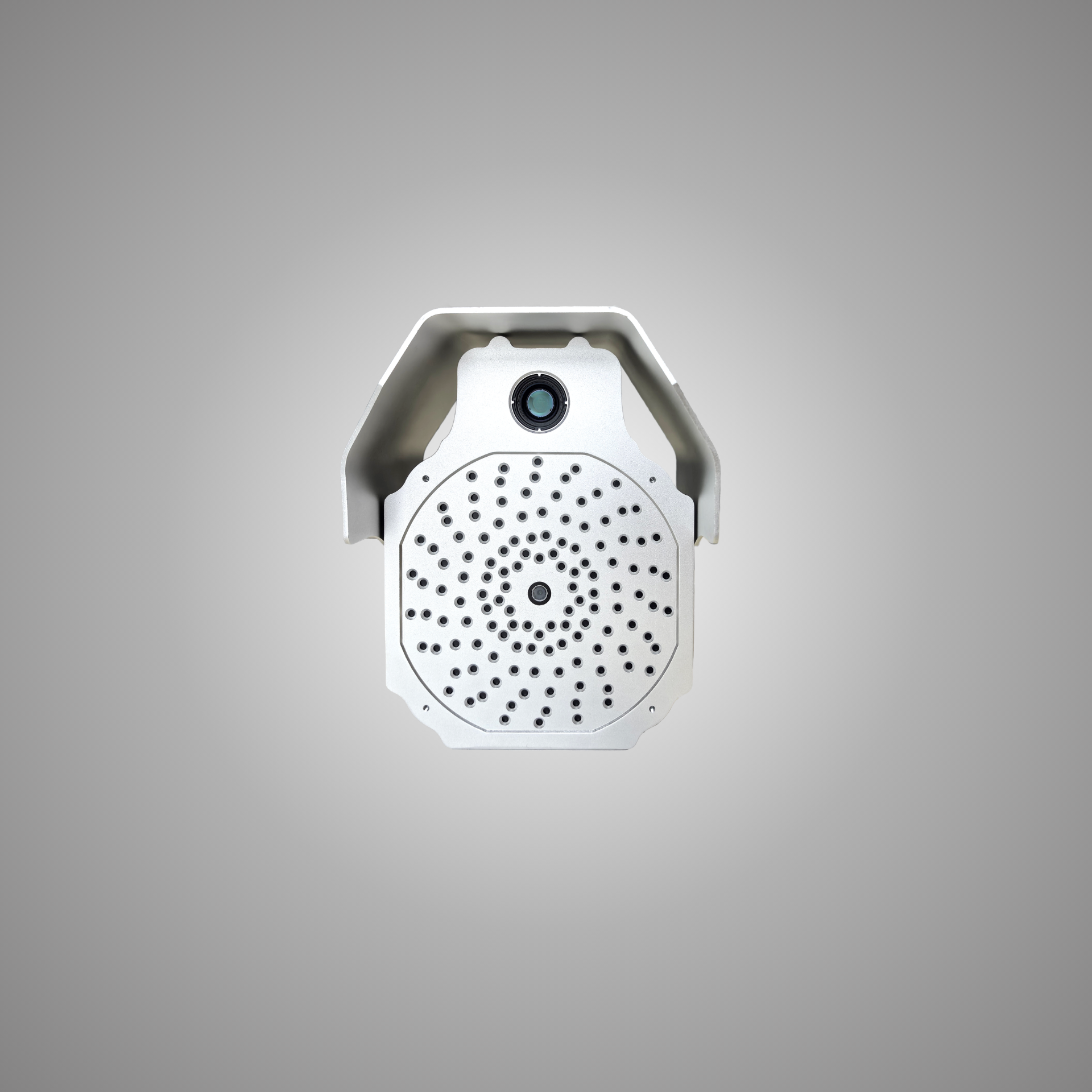

Fixed Monitoring

Stationary and PTZ solutions for continuous area surveillance. Ideal for gas plants and large open yards.

Explore Fixed Series

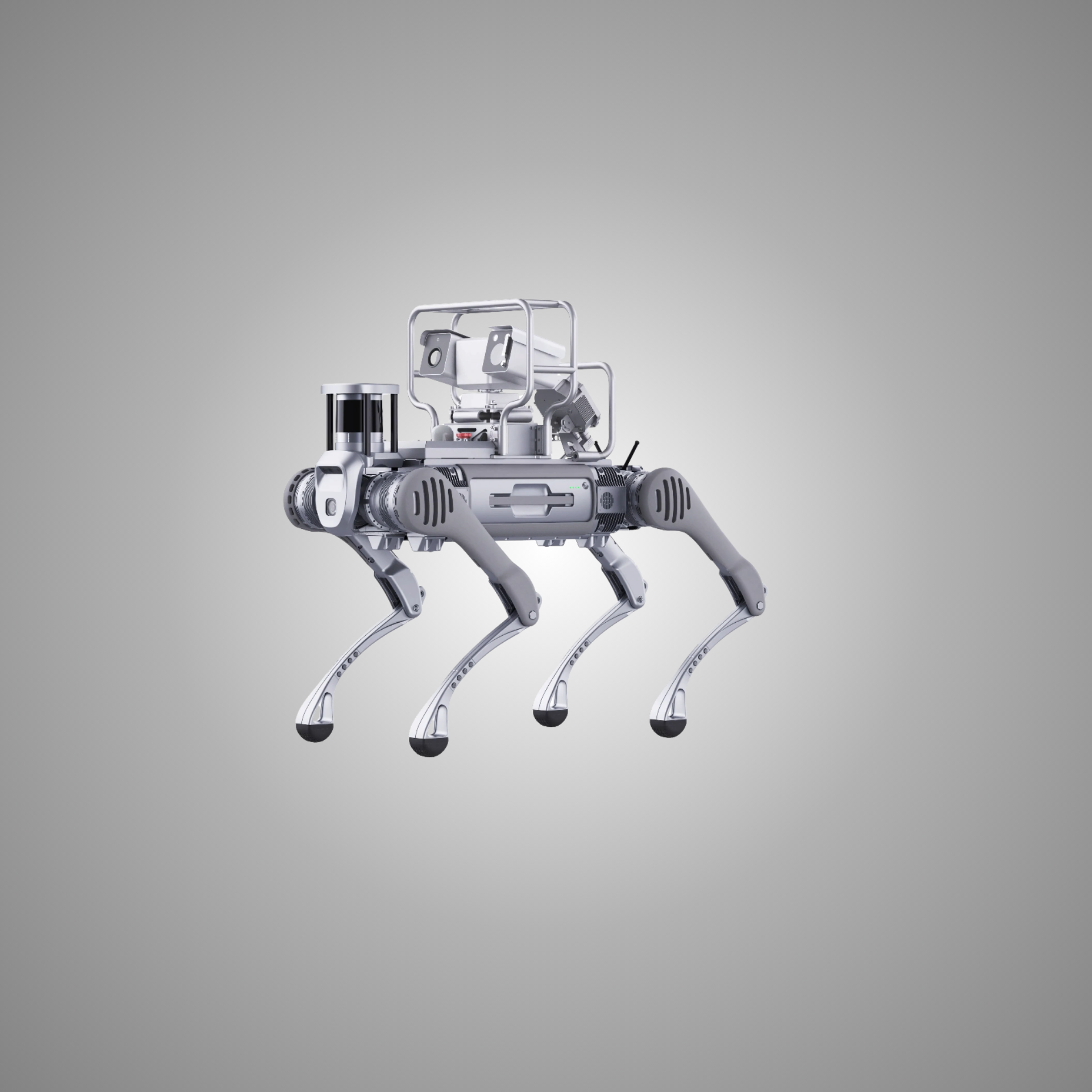

Robotic Sensing

Lightweight units designed for inspection robots. Autonomous patrol for unmanned substations.

Explore Robotic Series

Why Choose Our Online Systems?

AI Edge Computing

All devices feature built-in AI to analyze leak rates and classify PD types locally, reducing bandwidth usage.

Seamless Integration

Native support for ONVIF, Modbus TCP, and MQTT ensures easy connection to your existing SCADA/DCS.

Industrial Grade

IP68 waterproof and ATEX certified options available for the harshest hazardous environments.

⚡

Electric Power Utilities

Ensure grid reliability by continuously monitoring transformers and AIS/GIS switchgear. Our cameras instantly visualize and classify Partial Discharge (PD) phenomena such as Corona, Arcing, and Tracking before they lead to insulation failure or outages.

Key Targets: Substations, High-Voltage Transmission Lines, Insulators.

⛽

Oil & Gas (Midstream/Downstream)

Detect pressurized Gas Leaks in complex piping systems, even in noisy environments. Our ATEX-certified sensors identify fugitive emissions of Methane, Hydrogen, and Nitrogen, enhancing safety in Zone 2 hazardous areas.

Key Targets: Compressor Stations, Valves, Flanges, Storage Tanks.

🏭

Smart Manufacturing

Reduce energy costs by up to 30% by locating Compressed Air Leaks in pneumatic systems. The system also detects early mechanical anomalies in robotic arms and automated conveyors through acoustic signature analysis.

Key Targets: Pneumatic Lines, Vacuum Systems, Steam Traps.

⛏️

Mining & Bulk Handling

Prevent catastrophic failures in long-distance transport. Our acoustic imagers detect the unique sound of failing Conveyor Idler Bearings amidst loud background noise, enabling predictive replacement during scheduled downtime.

Key Targets: Conveyor Belts, Crushers, Ventilation Fans.

Question about online acoustic camera

The high frequency question about acoustic camera.

What is the difference between the HZ-FA-371 and the HZ-FA-371T?

The HZ-FA-371 is a dedicated fixed acoustic camera with 128 MEMS microphones for detecting partial discharge, gas leaks, and mechanical noise. The HZ-FA-371T adds a high-resolution thermal imaging module (640×512) to the same acoustic platform, enabling simultaneous acoustic and temperature anomaly detection for more comprehensive fault diagnostics.

Can these cameras be integrated with robotic systems?

Yes, both models are engineered for robotic integration. They feature a compact, lightweight design (approx. 900g for FA-371, 1.6kg for FA-371T), standard Ethernet/HTTP interfaces, and support RTSP streaming, making them compatible with most industrial robots, AGVs, and automated inspection platforms.

What types of faults can these acoustic cameras detect?

They are designed for three primary applications:

Partial Discharge (PD) Detection: Identify and classify corona, floating, and surface discharges in high-voltage equipment.
Gas Leak Detection: Locate pressurized gas leaks and estimate leak rate and potential financial loss.
Mechanical Noise Monitoring: Detect abnormal sounds in rotating machinery for predictive maintenance.

What is the detectable frequency range and distance?

The acoustic sensors cover a bandwidth of 2 kHz to 65 kHz, capturing both audible and ultrasonic signals. Depending on the source intensity and environmental conditions, the effective detection distance ranges from 0.3 meters up to 50 meters.

How accurate is the gas leak rate estimation?

The system provides real-time leak rate estimates with high sensitivity. For example, it can detect leaks as small as >0.035 l/min at 120KPa from 0.3m, and >0.09 l/min at 300KPa from 5m, enabling prioritized maintenance planning.

Is the camera suitable for outdoor and hazardous environments?

Yes. Both models feature rugged enclosures with high protection ratings (IP66 for FA-371, IP65 for FA-371T) and are available with Ex ib IIC T4 Gb (gas) and Ex ib IIIC T80°C Db (dust) explosion-proof certifications, making them ideal for outdoor substations, industrial plants, and hazardous areas.

What data outputs and integration protocols are supported?

The cameras support Ethernet/HTTP transmission, RTSP video streaming, and provide real-time data via HTTP/WebSocket for alerts and integration with SCADA, DCS, or third-party monitoring platforms.

Does the device feature onboard processing (edge computing)?

Absolutely. The cameras perform real-time sound source localization and AI-based fault analysis directly on the device via edge computing. This minimizes latency, reduces network bandwidth usage, and enables instant alerts without relying on a central server.

HERTZINNO FIXED ACOUSTIC CAMERA

CONTINUOUS INDUSTRIAL INTELLIGENCE

The Hertzinno Online Acoustic Camera series is designed for environments requiring more than just periodic inspections. Engineered for bothpermanent fixed-mount installationandrobotic platform integration , these cameras provide 24/7 autonomous monitoring of critical assets, ensuring no anomaly goes undetected.
