Fixed Acoustic Cameras
Continuous, real-time visualization of Gas Leaks and Partial Discharge. Now featuring Thermal Fusion technology for comprehensive industrial safety.
Our Online Solutions
HZ-FA-371
The standard for online explosion-proof acoustic imaging. Compact, lightweight, and designed for 24/7 robotic inspection in confined spaces.
- Sensor: 128 MEMS Microphones
- Protection: IP68 & ATEX Certified
- Function: Real-time Partial Discharge & Gas Leak Detection
- Mounting: Robot / Fixed Pole / Drone
HZ-FA-371T
The ultimate fusion sensor. Combines acoustic imaging with high-resolution Thermal Infrared to detect insulation failure and mechanical overheating simultaneously.
- Dual Spectrum: Ultrasonic + Infrared (640×512)
- Double Safety: Detects both PD sparks and loose connections (Hotspots)
- Precision: Pinpoint faults with fused "Sound-Thermal" overlay
- Application: High-voltage substations & critical machinery
HZ-PA-3EX
A comprehensive Pan-Tilt-Zoom monitoring station. Capable of 360° scanning for gas leaks and integrating Laser Methane (TDLAS) technology for precise concentration measurement.
- Capabilities: 360° Continuous Cruise Scanning
- Sensors: Acoustic + Optical (32x Zoom) + Laser TDLAS
- Range: Long-distance detection (up to 100m for gas)
- Control: ONVIF / Modbus Remote Operation
Industry Applications

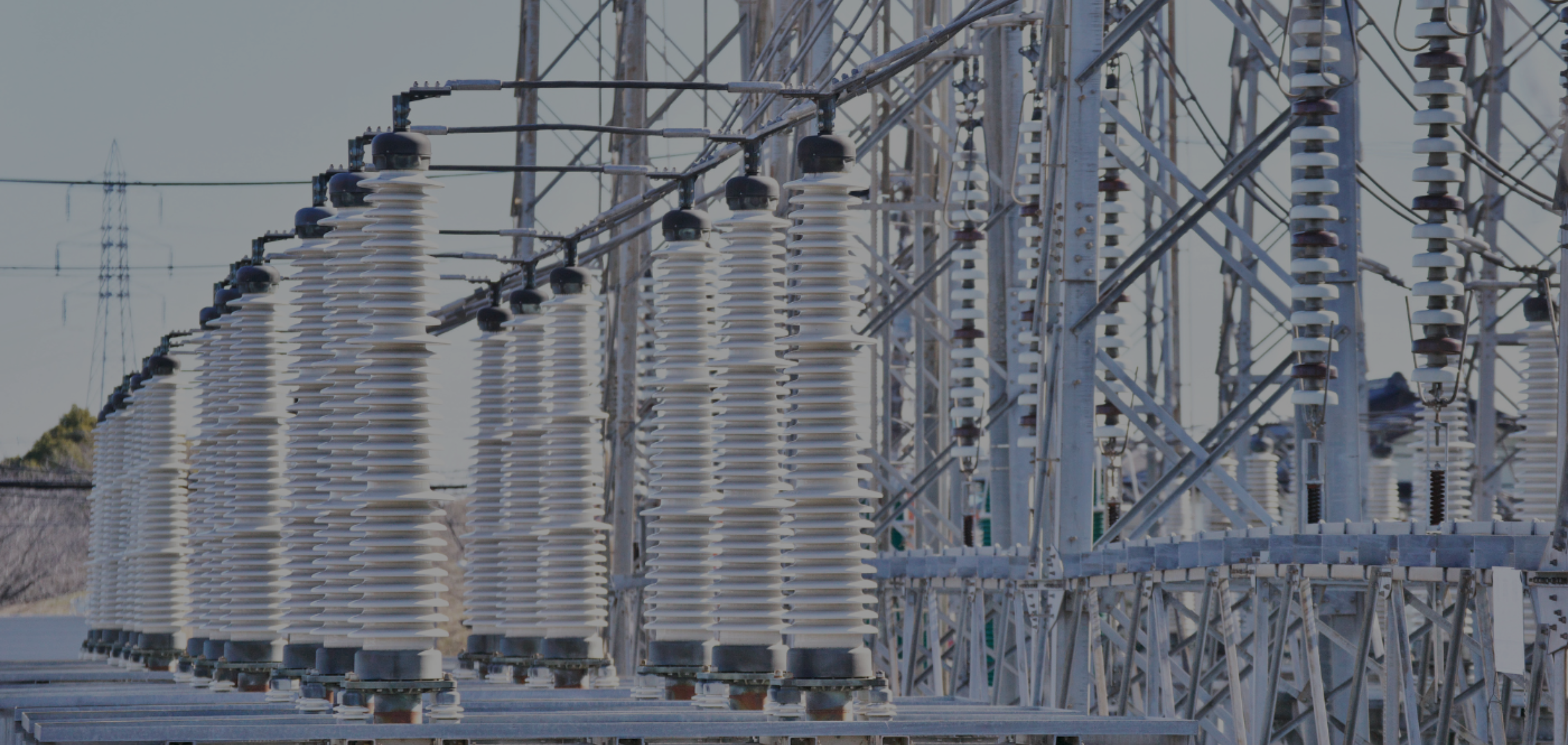

Power Substations
Use the thermal fusion capabilities of HZ-FA-371T to detect both electrical discharges and overheating joints simultaneously.

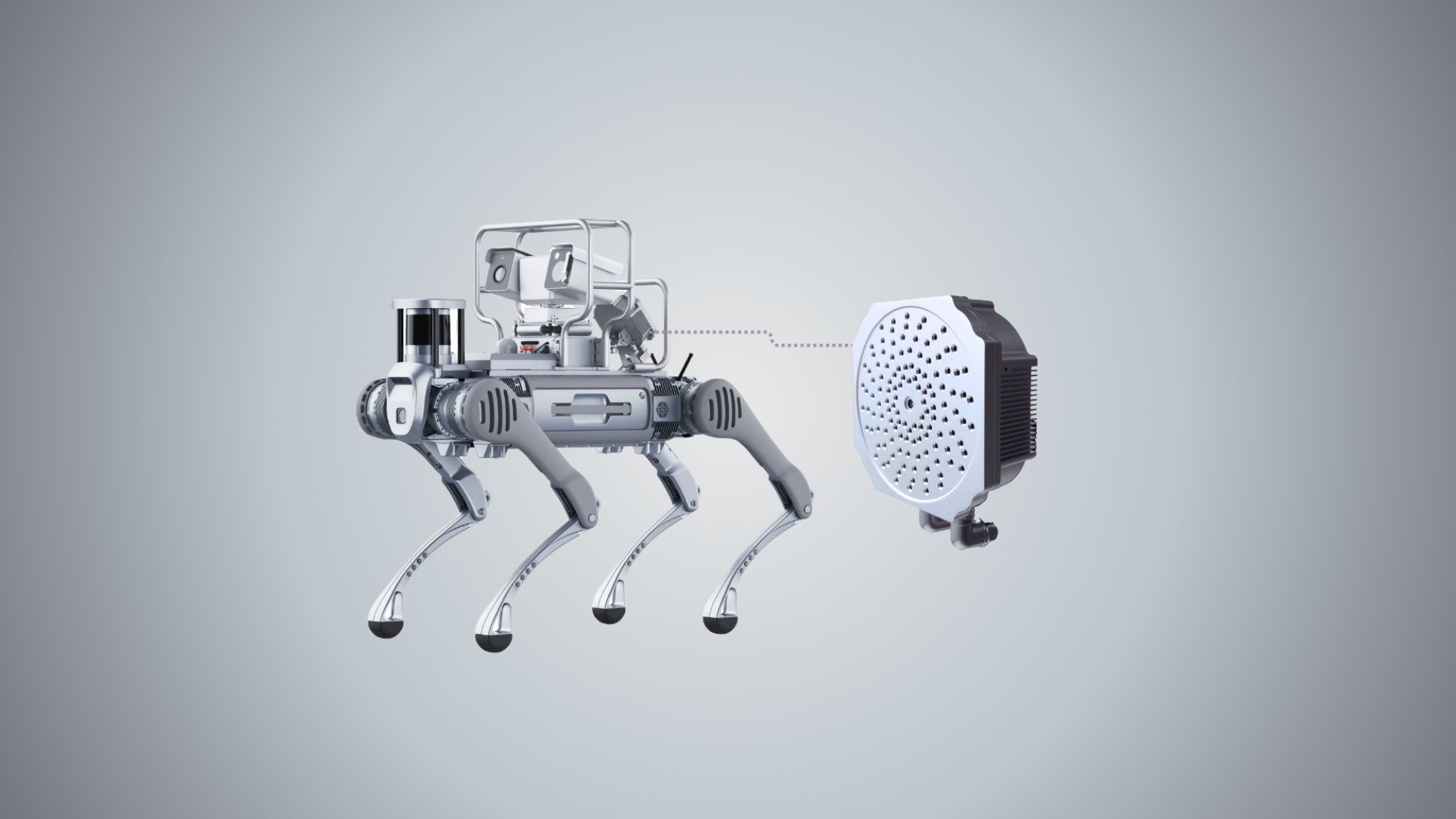

Robotic Patrol
Mount the HZ-FA-371/T on quadruped robots (dogs) or wheeled robots to autonomously inspect unmanned substations.

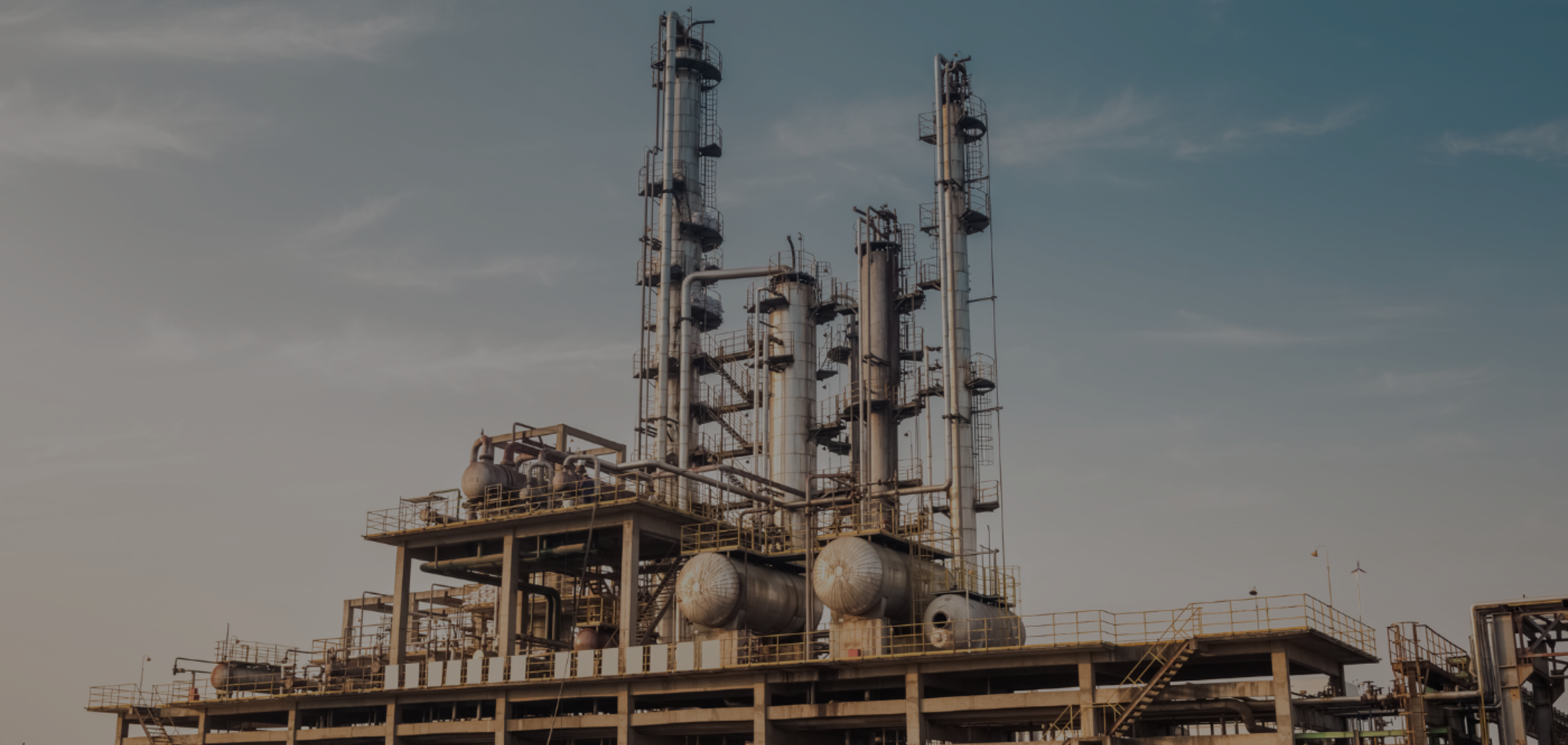

Gas Processing
Fixed HZ-PA-3EX units continuously scan pipe racks and compressor stations for dangerous leaks, integrating with SCADA alarms.
