Seeing the Invisible: Why Acoustic Imaging is the Ultimate Solution for Industrial Gas Leak Detection

The Silent Cost of Hissing Air

In industrial environments, compressed air, steam, and vacuum leaks are often ignored background noise. However, they represent a massive financial drain—often accounting for 20-30% of compressor energy costs. Traditional detection methods, like the "soapy water" test, are labor-intensive, while human listening is impossible in loud factories. Enter the Acoustic Camera (Acoustic Imager): a device that uses the physics of sound to visualize leaks, even when the environment is deafening.

1. The Physics of a Leak: What Does It Sound Like?

When pressurized gas escapes through a small orifice, it creates turbulence. This turbulence generates a broadband sound signal.

• The Spectrum: While leaks generate sound across the spectrum, the peak energy density for typical industrial leaks is found in the ultrasonic range (30 kHz – 50 kHz).

• The Human Limitation: Human hearing cuts off at 20 kHz. We miss the most distinct "signature" of the leak. Acoustic cameras, equipped with arrays of sensitive microphones, capture these high-frequency signals that our ears cannot detect.

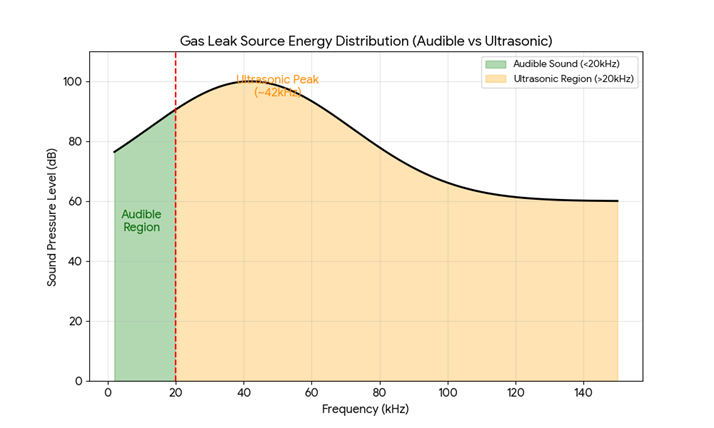

• Caption: As shown above, while leaks generate audible noise (green), the strongest and cleanest signal is found in the ultrasonic peak (orange), typically around 40 kHz.

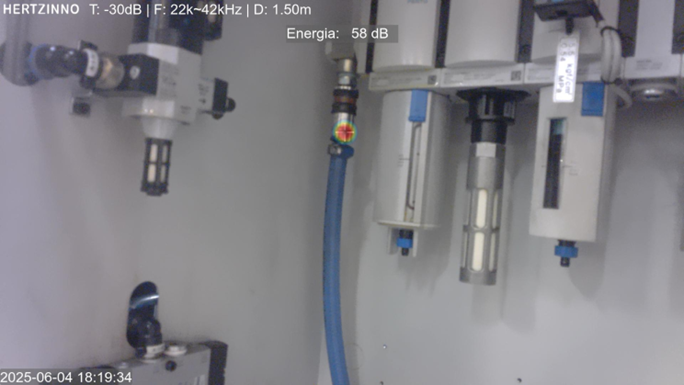

• Caption: This is a real-world example from Finland. By focusing on the 22kHz–42kHz range, the acoustic camera effectively filters out ambient factory noise to visualize precise leak locations at a short distance (1.50m).

2. Overcoming the Noise: The "Frequency Separation" Advantage

A common concern for facility managers is: "My factory floor is 95dB. How can this device work?"

The answer lies in Signal-to-Noise Ratio (SNR) optimization through frequency filtering.

Most industrial background noise—motors humming, gears grinding, fans spinning—is mechanical noise concentrated in the low-frequency audible range (<10 kHz). By using a high-pass filter to ignore everything below 20 kHz, the acoustic camera effectively "mutes" the factory machinery. To the sensor, the background becomes silent, and the ultrasonic signature of the leak shines like a beacon in the dark.

3. The Battle with Distance: Understanding Attenuation

Why not use the highest frequency possible (e.g., 100 kHz) for better precision? The limitation is physics: Atmospheric Absorption.

High-frequency sounds are absorbed by the air much faster than low-frequency sounds.

• • High Frequency (>100 kHz): Great precision but rapidly loses energy. As our data shows, a 150 kHz signal drops to near-zero detectability after just 15-20 meters.

• • Low Frequency (<20 kHz): Travels far but is easily masked by background noise.

• • The Sweet Spot (30-50 kHz): This range offers the perfect balance. It is high enough to bypass industrial noise but strong enough to travel 30-50 meters for effective long-range detection.

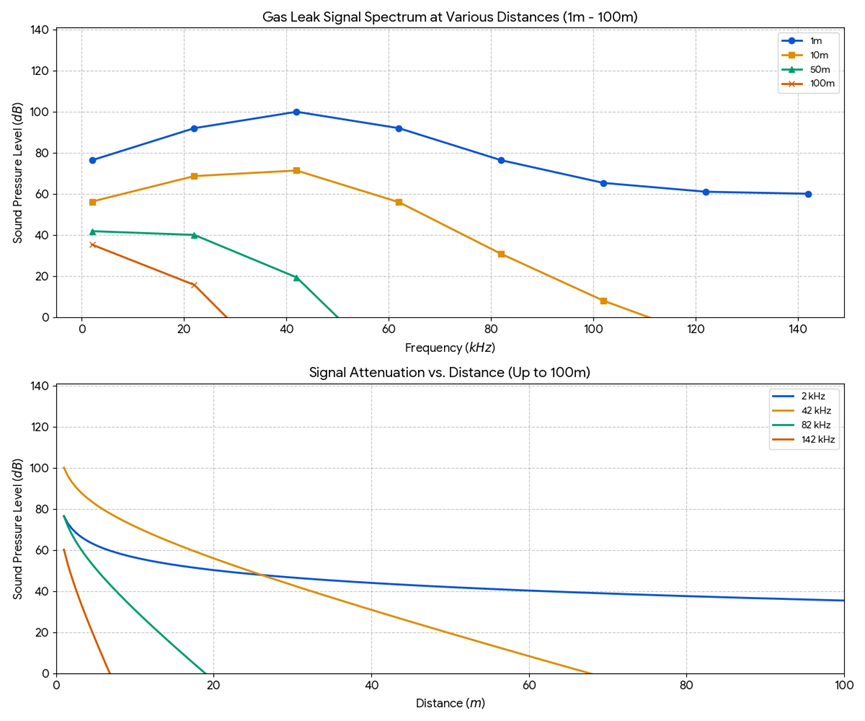

• Caption: The graph illustrates that while 2 kHz signals travel far, 142 kHz signals (red line) decay almost immediately. The 42 kHz range (orange line) maintains detectability over practical inspection distances.

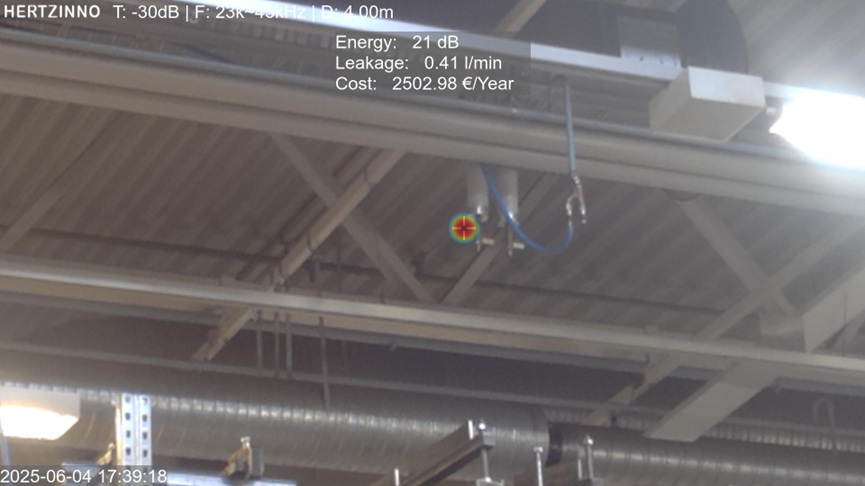

• Caption: The screen showed a detection distance of 4.00m, and a slight air leak was successfully detected at the ceiling support in the optimized frequency band of 23k~45kHz.

1. Practical Guide: Choosing the Right Frequency for the Job

Modern acoustic cameras allow users to adjust the frequency range. Here is how to optimize your settings based on the physics:

Scenario

Recommended Frequency

Reasoning

Standard Factory (High Noise)

30 kHz - 50 kHz

The Gold Standard. Bypasses mechanical noise while ensuring good detection range (10-20m).

Outdoor / Long Distance

20 kHz - 35 kHz

Lower frequencies suffer less atmospheric absorption, allowing you to scan pipe racks from 30m+ away.

Micro-Leaks / Lab / Close-up

50 kHz - 100 kHz

At close range (<2m), high frequencies offer superior directionality and resolution to pinpoint tiny pinholes.

Conclusion

Acoustic imaging is not magic; it is applied physics. By visualizing sound waves and intelligently filtering frequencies, we can detect leaks faster, safer, and more accurately than ever before—regardless of how loud the environment is.
