HZ0103003

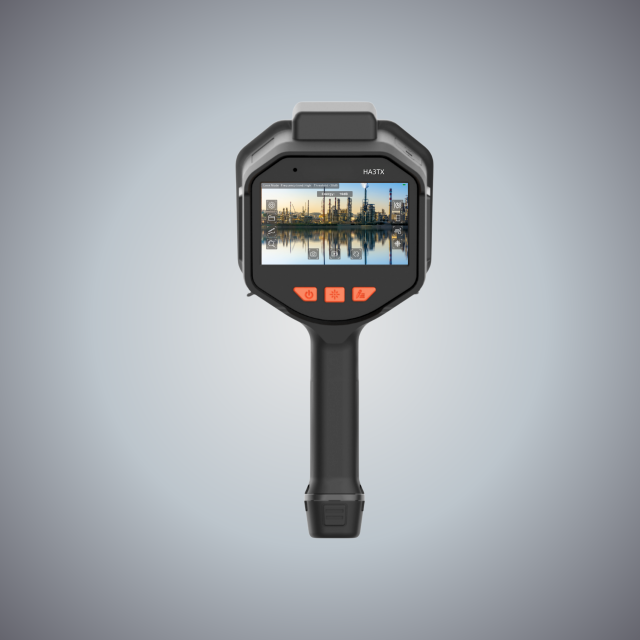

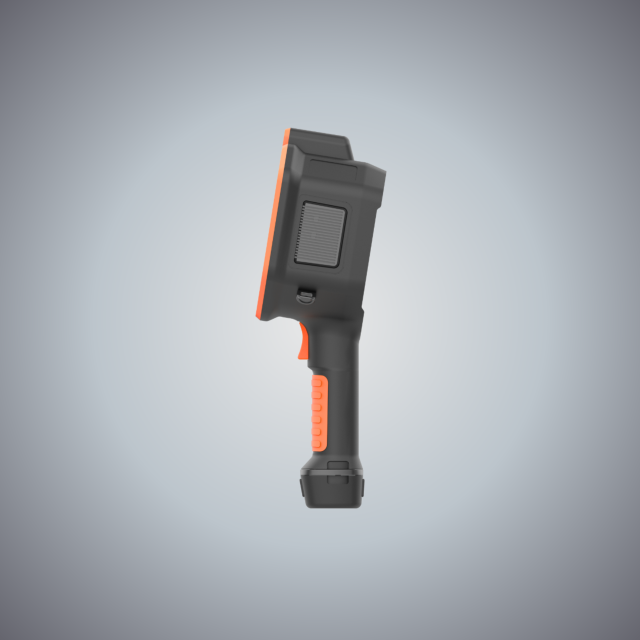

Intrinsically safe variant of the flagship HA3T, engineered for comprehensive inspections in potentially explosive atmospheres (Zones 1 & 2). It is one of the few handheld devices on the market to integrate a 144-channel MEMS microphone array with a high-performance 640×512 radiometric thermal sensor.
This dual-modality capability allows inspectors in the Oil & Gas, Chemical, and Mining sectors to simultaneously detect gas leaks, partial discharge, and thermal anomalies (hotspots) using a single tool. Certified for ATEX compliance, the HA3TX delivers laboratory-grade diagnostics—including a detection bandwidth up to 150 kHz and temperature measurement up to 550°C—without compromising safety.
Dual-Sensor Fusion (Ex-Rated):
Combines ultrasonic sound source localization with high-resolution thermography. This allows users to visualize invisible gas leaks and verify them with thermal data (e.g., cooling effects of expanding gas) or cross-reference electrical faults (PD noise + thermal hotspots).
High-Fidelity Thermal Imaging:
Features an uncooled Vanadium Oxide sensor with 640×512 resolution and NETD ≤40mK, providing crisp thermal details essential for identifying subtle insulation failures or bearing overheating in hazardous zones.
Precision Acoustic Detection:

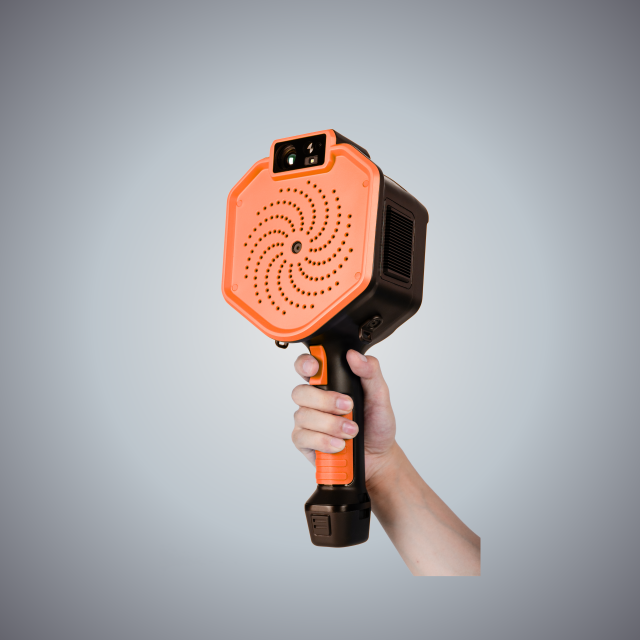

The 144-microphone array achieves ±1° localization accuracy and a wide bandwidth of 2 kHz to 150 kHz, enabling the detection of early-stage mechanical and electrical faults at distances up to 200 meters.
Intelligent On-Board Analysis:
Supports real-time Partial Discharge (PD) type classification and Gas Leak Rate estimation, with the ability to generate reports directly on the device.
Intrinsically Safe Design:
Built to rigorous ATEX standards (e.g., Ex ib IIC T4 Gb), ensuring safe operation in environments with combustible gases or dust.
| Model | HA3TX |
| Microphones | 144 Digital MEMS microphones |
| Frequency Bandwidth* | 2 kHz ~ 150 kHz |
| Dynamic Range of Camera | -30 dB ~ 120 dB |
| Minimum Imaging Sensitivity* | 10 kHz：3 dB SPL 20 kHz：-15 dB SPL 40 kHz：-5 dB SPL 60 kHz：10 dB SPL 80 kHz: 35 dB SPL 100 kHz: 45 dB SPL |
| Operating Distance | 0.3 m ~ 200 m |
| Dynamic Range of Multiple Targets | 0 ~ 18 dB |
| Space Resolution | ≤1 cm@1m, 40 kHz |
| Microphone Self-check | YES |
| General | |
| Optical Camera | 13MP |
| Lighting | LED lighting |
| Photo Image Resolution | 4K (3840×2160), 1080P |
| Digital Zoom | 1/2/4/8 |
| Video Image Resolution | 1920 ×1080@30 fps, 1920 ×1080@60 fps |
| Storage | 128 GB |
| Annotation | Text, voice, photo and tags |
| Display | 5-inch, Touch Screen, 1920 ×1080 |
| Wi-Fi & Bluetooth | IEEE 802.11a/b/g/n/ac 2.4G&5G & BT4.2 |
| E-compass & GPS | Support |
| Laser Distance Measurement | 0.1 - 20 m(±1mm ) (Laser Class II, 620 -690 nm, ＜1 mW) |
| Data Transmission | USB, Wi-Fi, Bluetooth |
| USB Port | TYPE-C |
| Battery | Li-Ion rechargeable battery, up to 4 hours / 7 hours |
| Charging Time | 2.5 h (from 10% to 90%) & PD Fast Charging |
| Protection Level | IP54 |
| ATEX | II 2 G Ex ib llC T4 Gb II 2 D Ex ib lllC T130°C Db |
| Tripod Mount | 1/4"-20 UNC |
| Weight | Less than 1.2 kg |
| Dimension | 333 ×152 ×115 mm |
| Working Temperature Range | -20 °C ~ 55 °C |
| Storage Temperature Range | -40 °C ~ 85 °C |
| Humidity | 10% -95% (non-condensing) |
| Applications | |
| Work Mode | Partial Discharge, Leaks Detection, Mechanical Noise and Thermal |
| Analysis Software | On-device Analysis, PC software, Cloud software |
| Thermal Specifications | |
| Sensor | 640 × 512 （Uncooled Vanadium Oxide） |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 ~ 14 μm (LWIR) |
| NETD | ≤ 40 mK(@25°C, F/1.0) |
| Measurement Range & Accuracy | -20°C ~ 150°C / 100°C ~ 550°C (±2°C or ±2% reading (whichever greater)) |
| IFOV | 0.8 mrad |
| FOV | 29.3°(H)×23.4°(V), 37.5°(D) |
| Focal Length | 15 mm (fixed focus) |
| Frame Rate | 30 Hz |
↔ Drag to reveal 640*512 Thermal Resolution
The HA3T series features a high-definition 640*512 thermal sensor. By fusing acoustic data with thermal precision, it ensures no anomaly goes undetected, even in complex industrial environments.
