In the operation and maintenance of modern smart grids, live detection of partial discharge (PD) has become the cornerstone of predictive maintenance. However, faced with a wide range of acoustic imaging devices on the market, engineers often find themselves at a crossroads: Should they go for broad, all-encompassing specifications, or choose a tool that delivers greater precision in real-world scenarios?
Through in-depth analysis of hundreds of substation inspection cases, we have distilled the core logic behind why the Hertzinno HA3 Series Acoustic Imager stands out in practice.
In PD detection, a common misconception is that “as long as you can get close enough, sensitivity doesn’t really matter.”
A Game-Changer in SNR: The HA3 Series’ core advantage lies in its outstanding background noise suppression capability. In the complex electromagnetic and environmental noise of a substation, the HA3 can extract weak PD signatures from cluttered signals.
Pinpoint Localization: Unlike the “large, smeared” heatmaps generated by some competing models, the HA3 Series produces smaller, more focused heatmaps that allow engineers to precisely lock onto the physical origin of the discharge, rather than staring at a blurry patch of color.
When it comes to identifying discharge types, the HA3 Series adheres to a scientific classification method based on physical acoustic fingerprints.

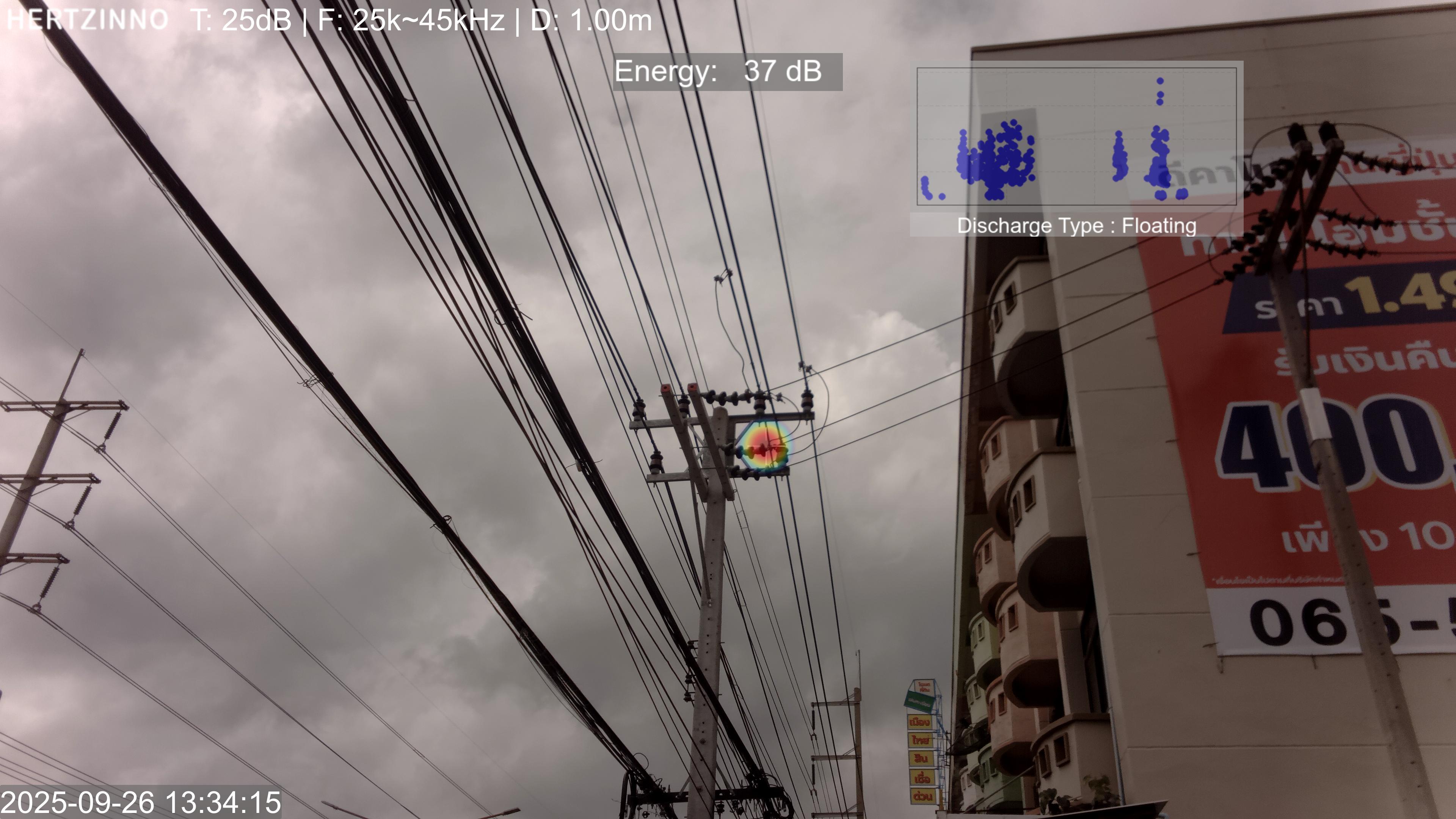

Rigorous PD Categorization: We focus on corona discharge, surface discharge, and floating discharge. Floating discharge, in particular, is one of the most dangerous hidden hazards in power systems. The HA3 provides the most direct diagnostic evidence through an optimized PRPD (Phase-Resolved Partial Discharge) pattern.
Honesty About Internal Discharge: It is scientifically recognized that PD signals deeply buried within oil-paper insulation of transformers undergo severe attenuation before reaching the air. The HA3 Series does not claim to be a “universal detector.” Instead, it captures truly detectable signals through high-frequency monitoring (supporting up to 150 kHz).
In acoustic detection, simple pulse counting can often be misleading. The HA3 Series takes a more professional approach:
Avoiding Multipath Effects: Sound waves reflecting inside equipment create ghost images. Simple counting logic can easily lead to “double counting,” resulting in an exaggerated perception of risk.
Environmental Compensation: Sound intensity is heavily influenced by humidity, temperature, and distance. The HA3 integrates built-in temperature, humidity, and atmospheric pressure compensation sensors. It assesses the true risk level of PD by classifying severity rather than simply adding up numbers.
Intelligent Band Management: Unlike traditional devices that require manual band adjustment, the HA3 supports one‑touch switching between Auto, Low, Medium, and High modes, automatically avoiding on-site environmental interference.
A good tool should not become a burden during work. The HA3 Series achieves an optimal balance in hardware design:
Extreme Lightweighting: Its volume and weight are only approximately 50% of mainstream competitors. When long hours of handheld operation, climbing, or working in confined spaces are required, this portability is a guarantee of efficiency.
Industrial-Grade Protection: The entire series meets IP54 ingress protection rating, surpassing the IP40 standard of many competing products, ready for unexpected dust or rain in outdoor environments.
Closed-Loop Workflow: Recognizing the strict restrictions on external software installation in power systems, the HA3 supports generating inspection reports directly within the camera. Capture and generate on the spot – no conversion needed, perfectly aligned with cybersecurity requirements.
To meet the demands of all‑around inspections, the HA3T variant of the HA3 Series integrates a high‑precision infrared thermal imaging module. This “acoustic + thermal” dual-dimensional monitoring enables power equipment to not only “hear” PD faults but also “see” overheating defects – allowing a single instrument to cover the entire substation walkdown.
Closing Thoughts
The Hertzinno HA3 Series is more than just a product iteration, it is a redefinition of power inspection logic. We stand on scientifically sound data and extreme industrial design, empowering every engineer who safeguards the grid’s light.
